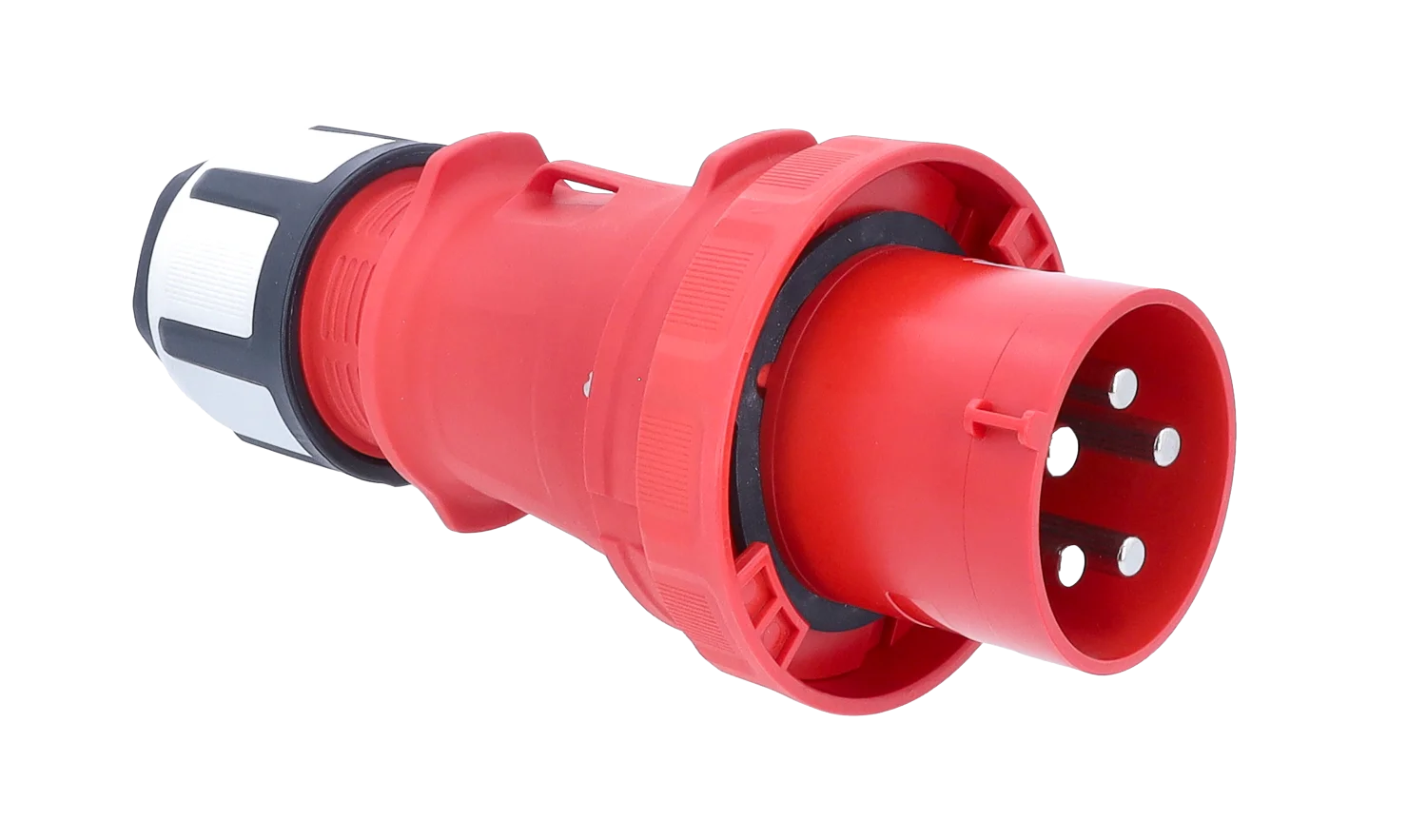

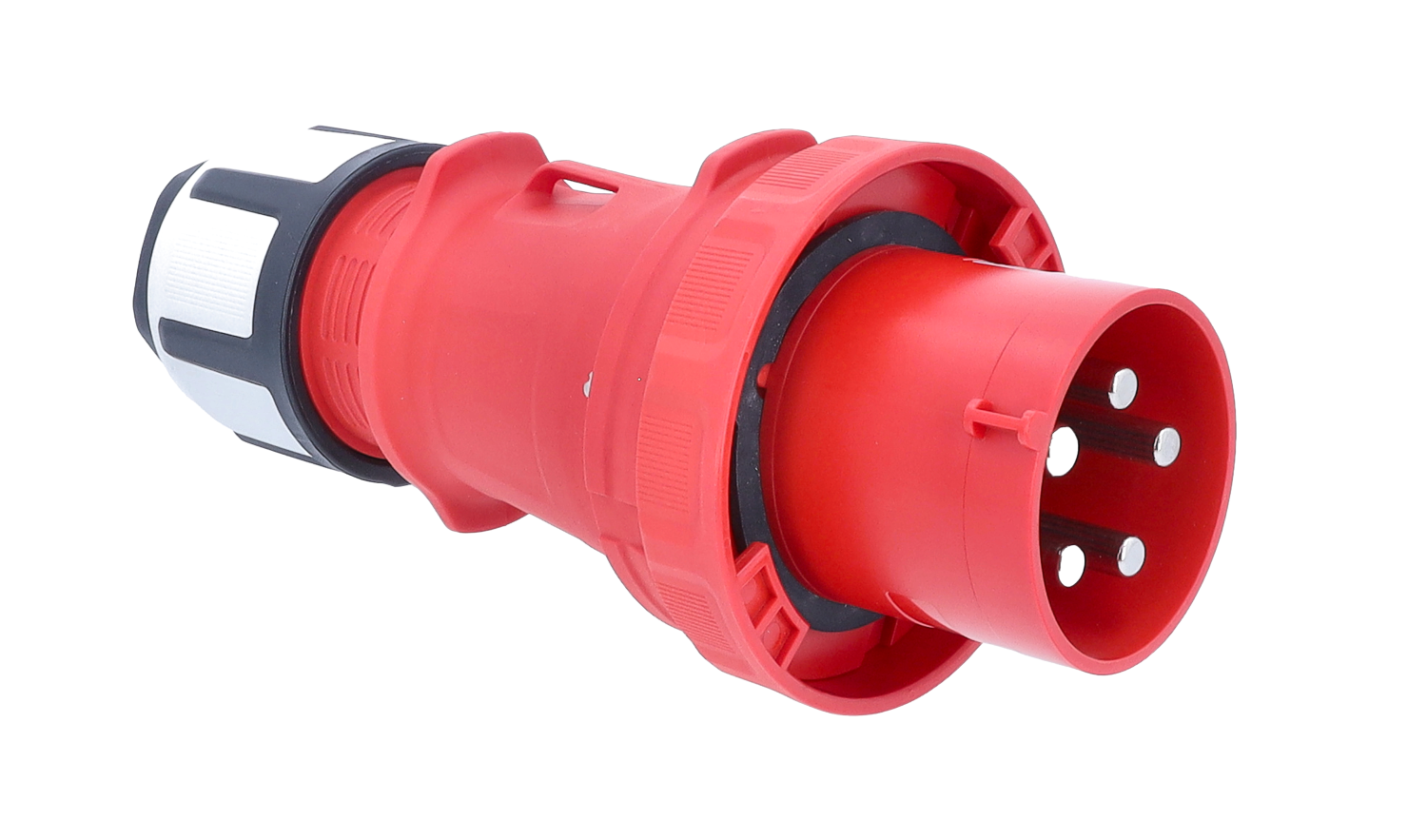

Schwabe CEE Contactstop 400V/63A IP44 5-polig

Artikelnummer: 88061423
Artikelnummer fabrikant: 61423
EAN: 4011160614231
Merk: Schwabe
Hulp nodig?
Gary helpt je graag verder!
Icon foto Bel ons 0172 - 538 433
Foto Gary
Productinformatie
Schwabe CEE Contactstop 400V/63A IP44 5-polig
CEE Contactstop 400V/63A IP44 5-polig

Slagvaste, spatwaterdichte behuizing van polyamide

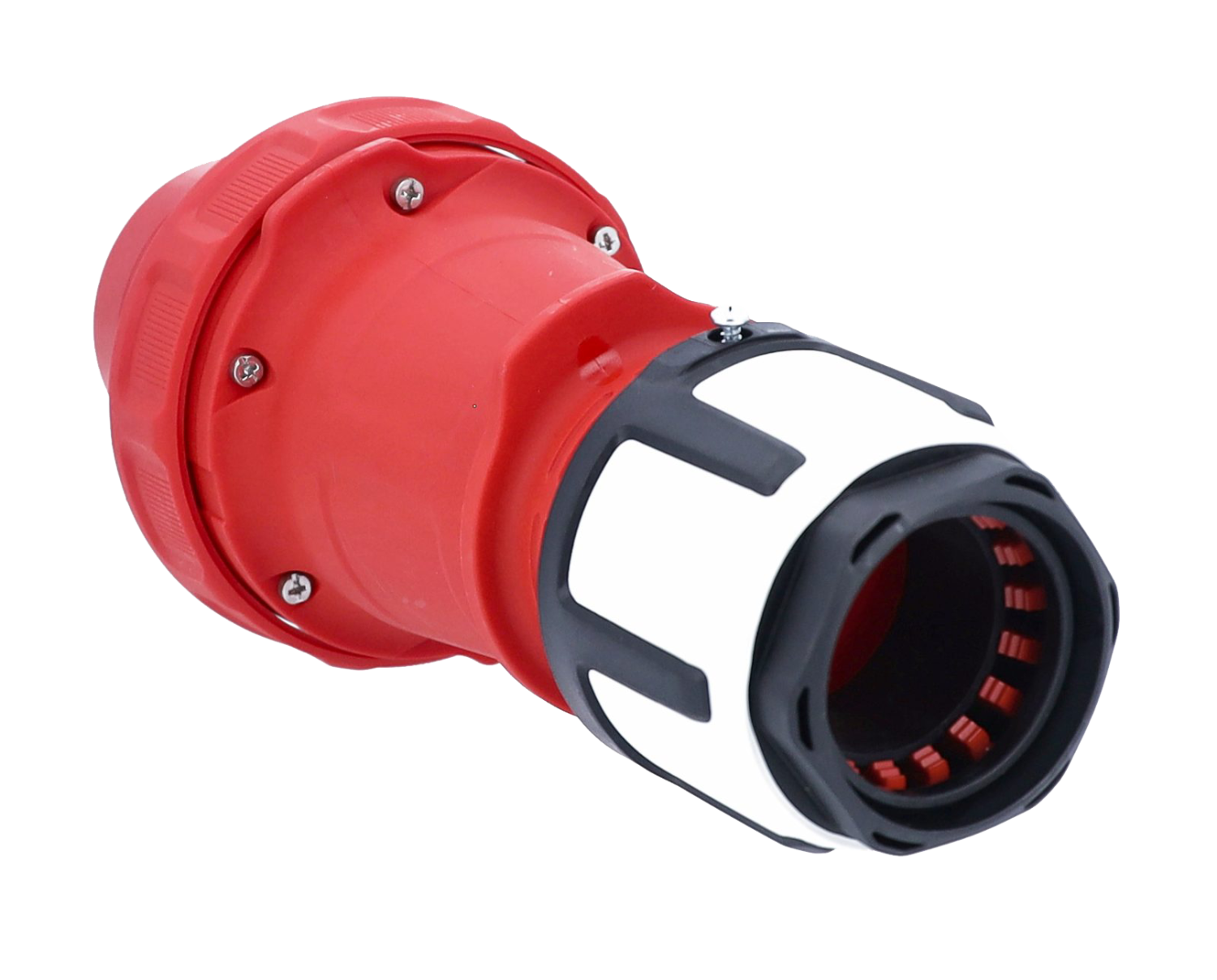

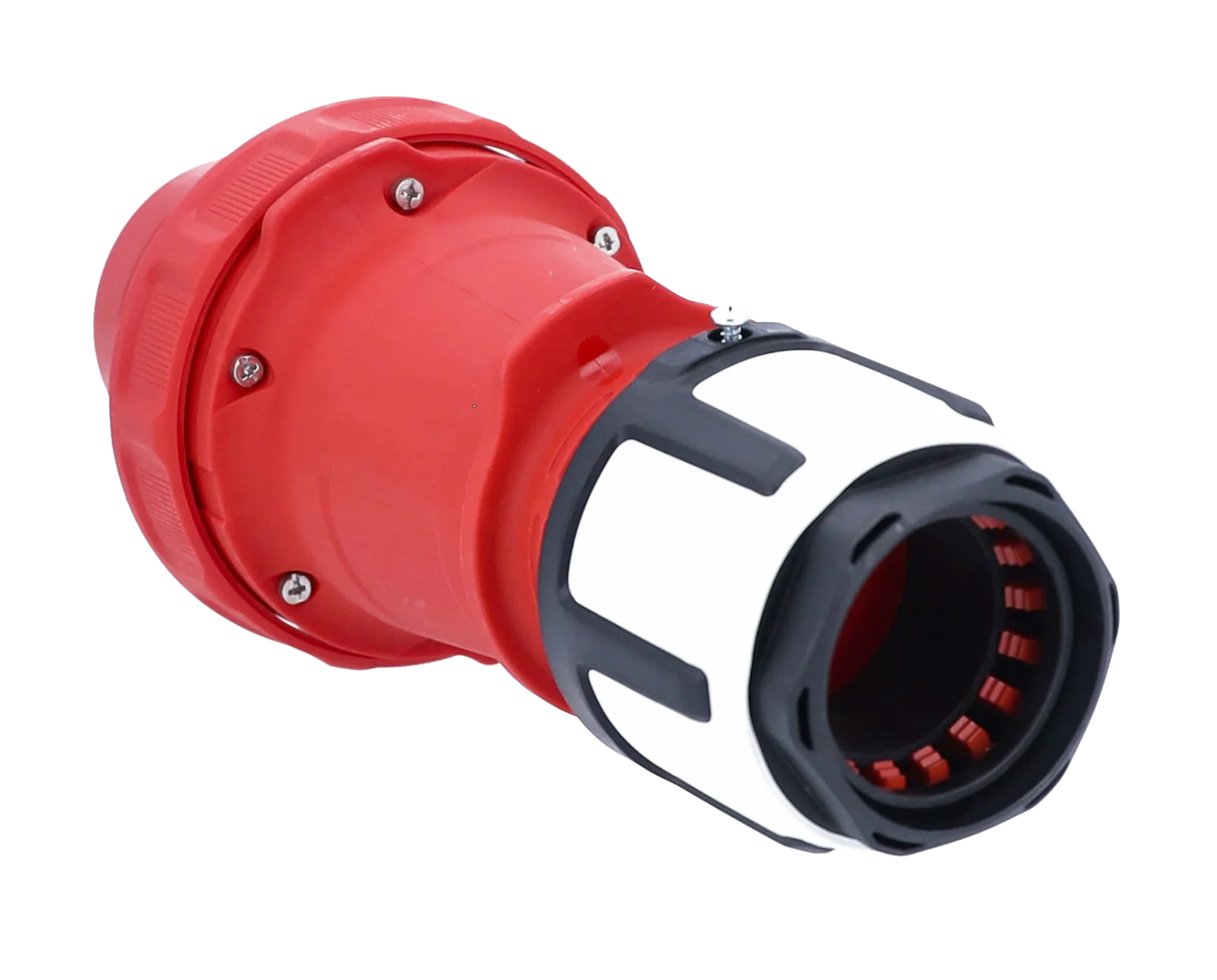

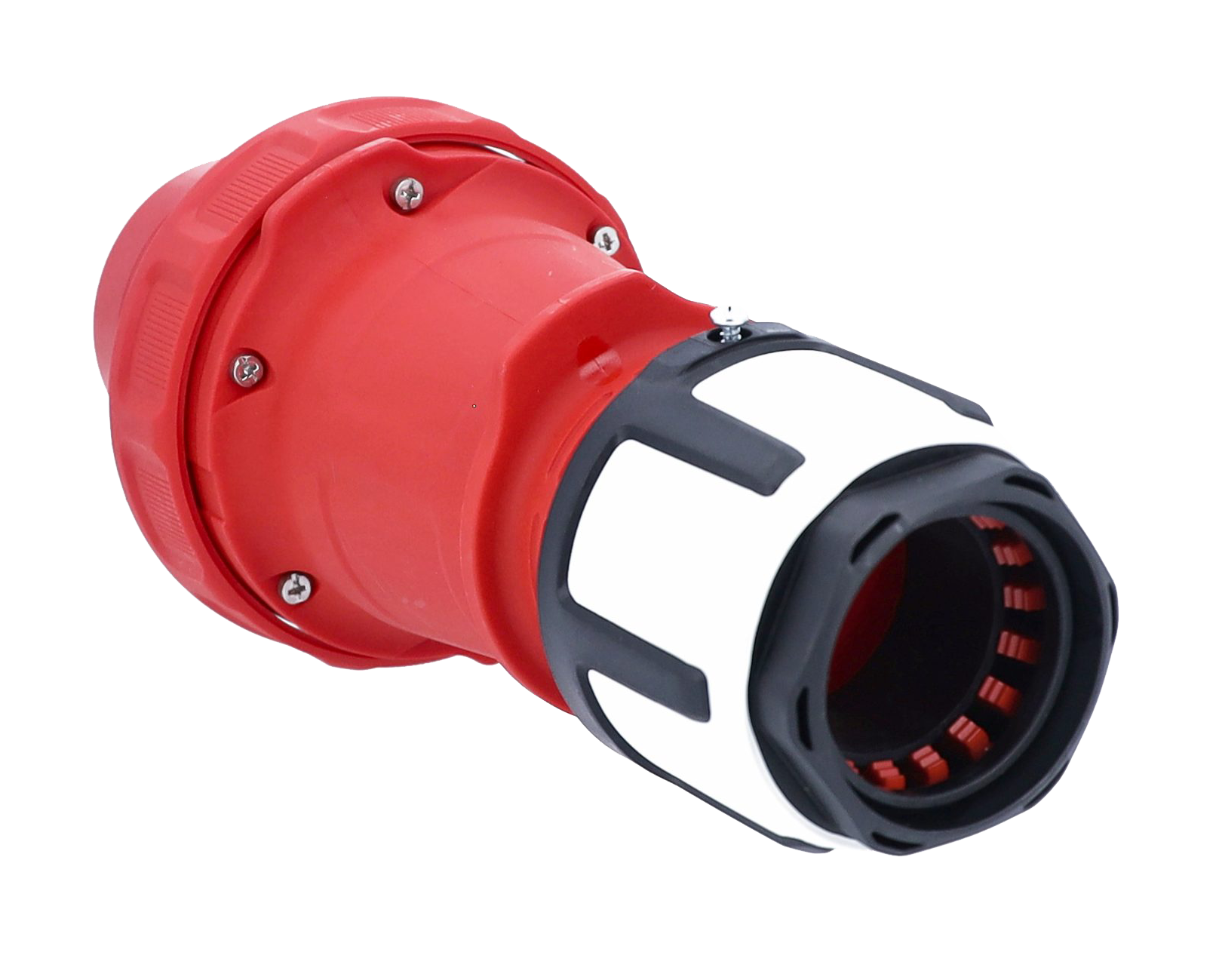

Schroefcontact voor kabelaansluiting
Trekontlasting en bescherming tegen knikken van de kabel

• Aansluiting: 400V/63A 5-polig 6h
• Beschermingsklasse: IP44
• Norm: IEC 60309
Specificaties
ETIM Classificatie Code: EC000140 (CEE-contactstop)
ETIM Groep Code: EG000014 (Industriële contact/steek toepassingen)
Aansluittechniek: Schroefklem
Aantal polen: 5
Beschermingsgraad (IP): IP67
IEC-stroomsterkte: 63 A
Insteekrichting: Recht
Kabelinvoer: Schroefwartel
Kenkleur: Rood
Materiaal: Kunststof
Spanning volgens EN 60309-2: 400 V (50+60 Hz) rood
Uurstand: 6 h
