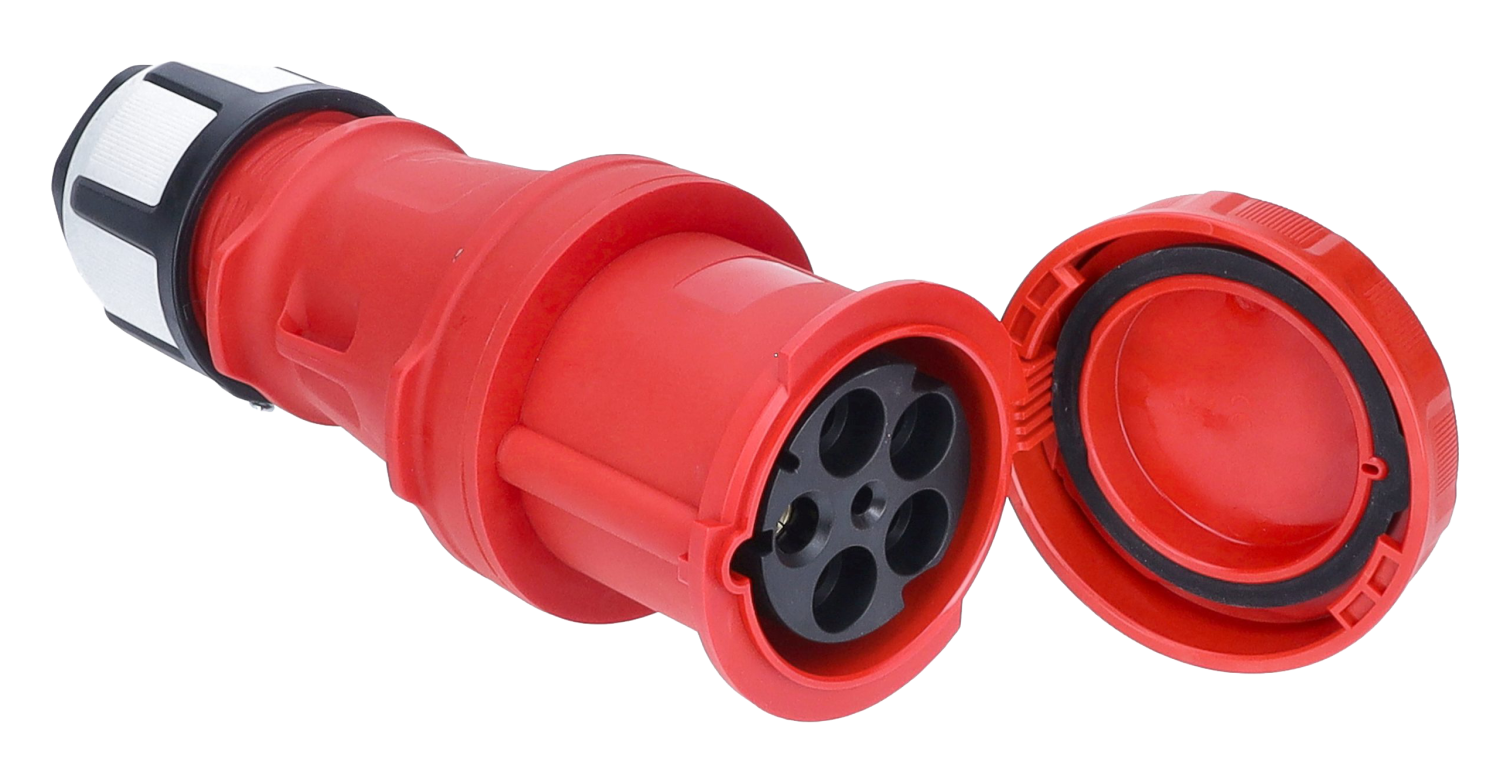

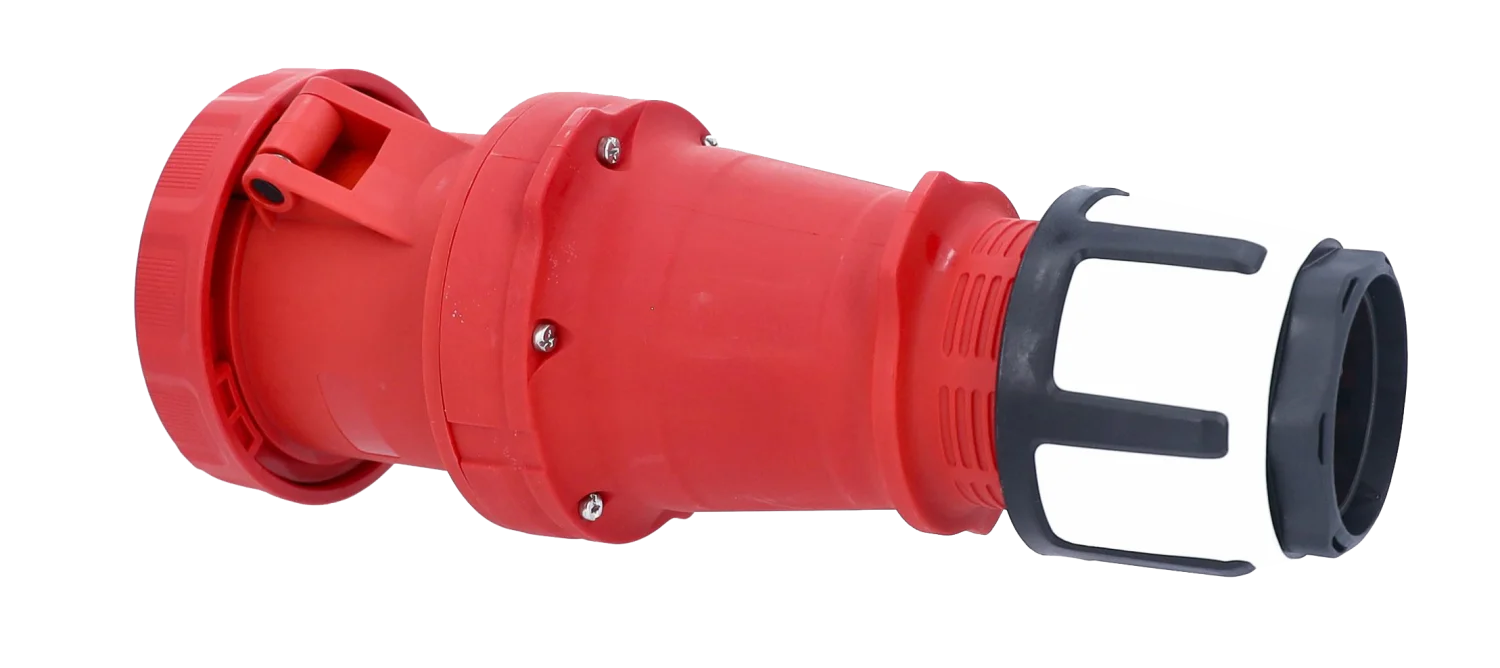

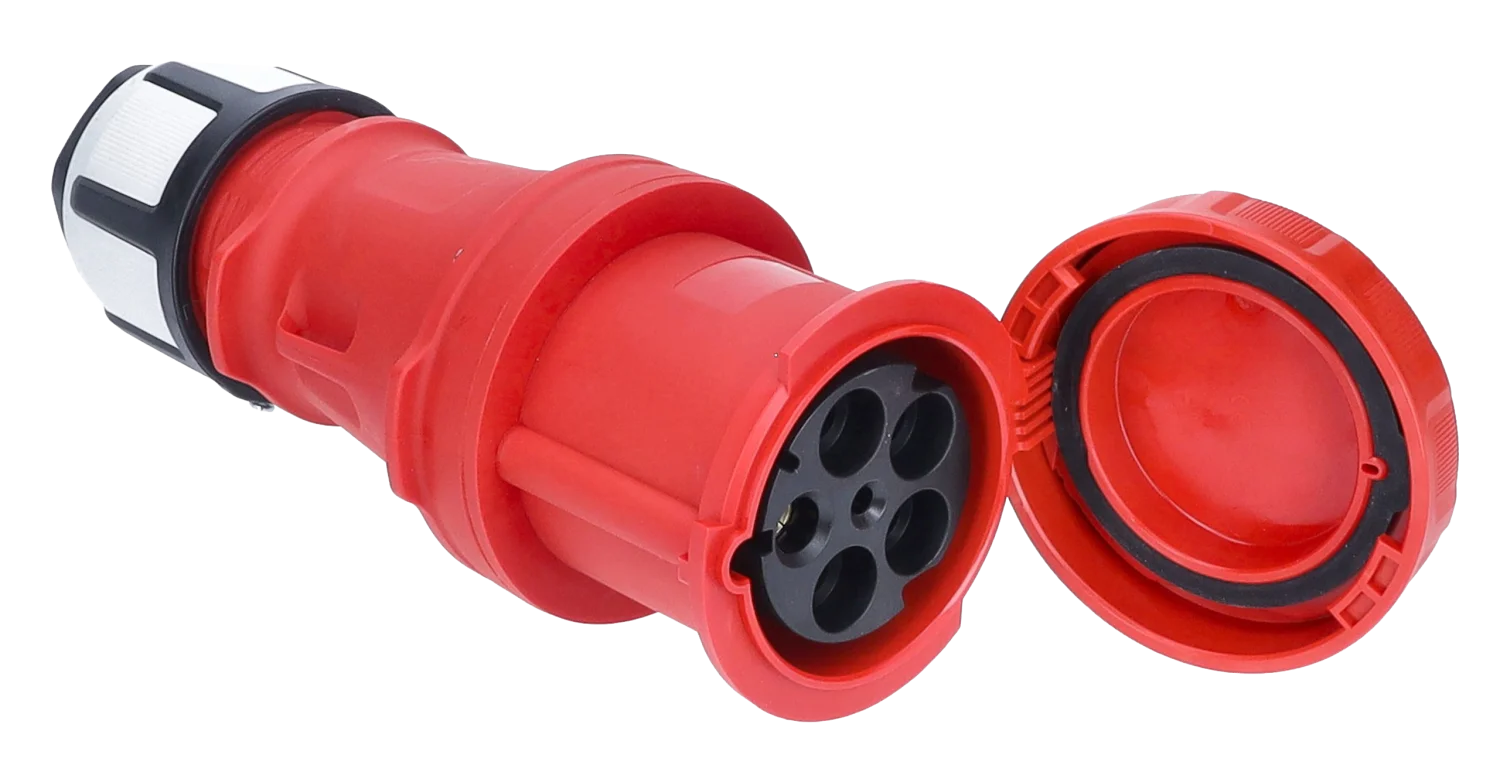

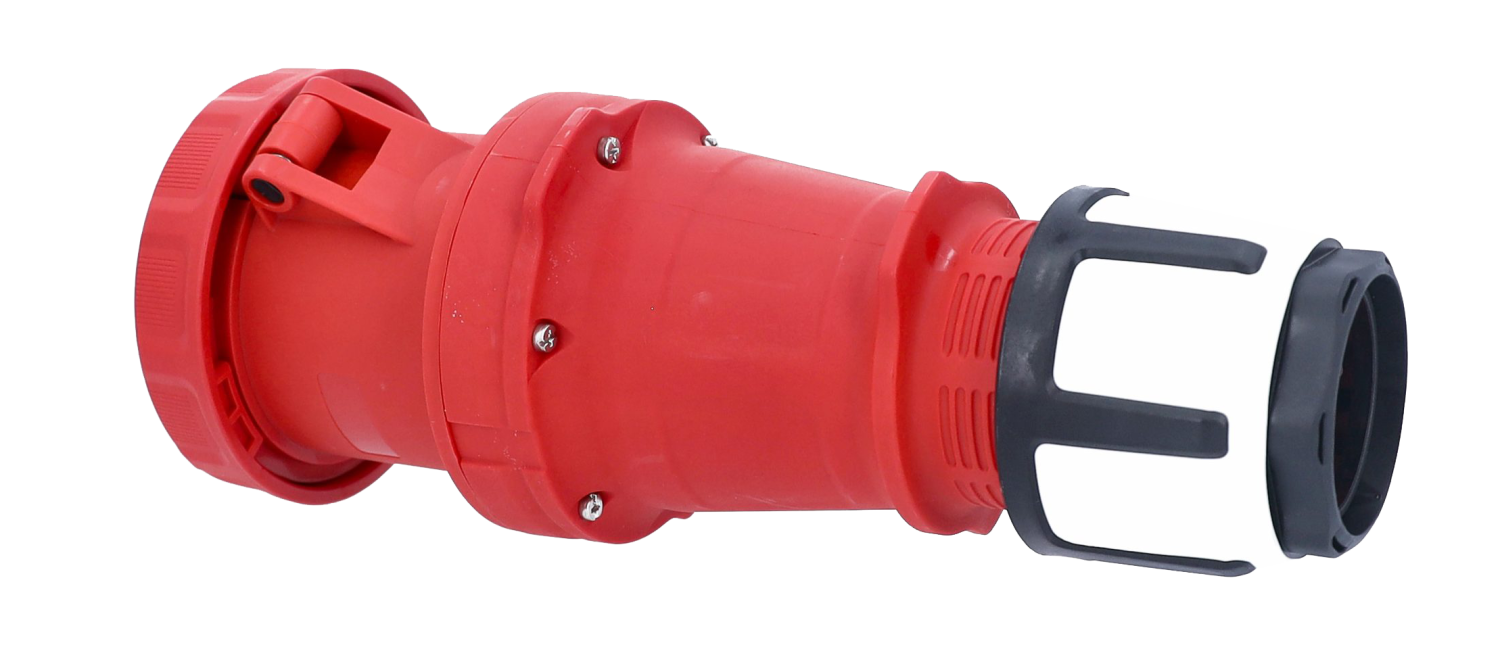

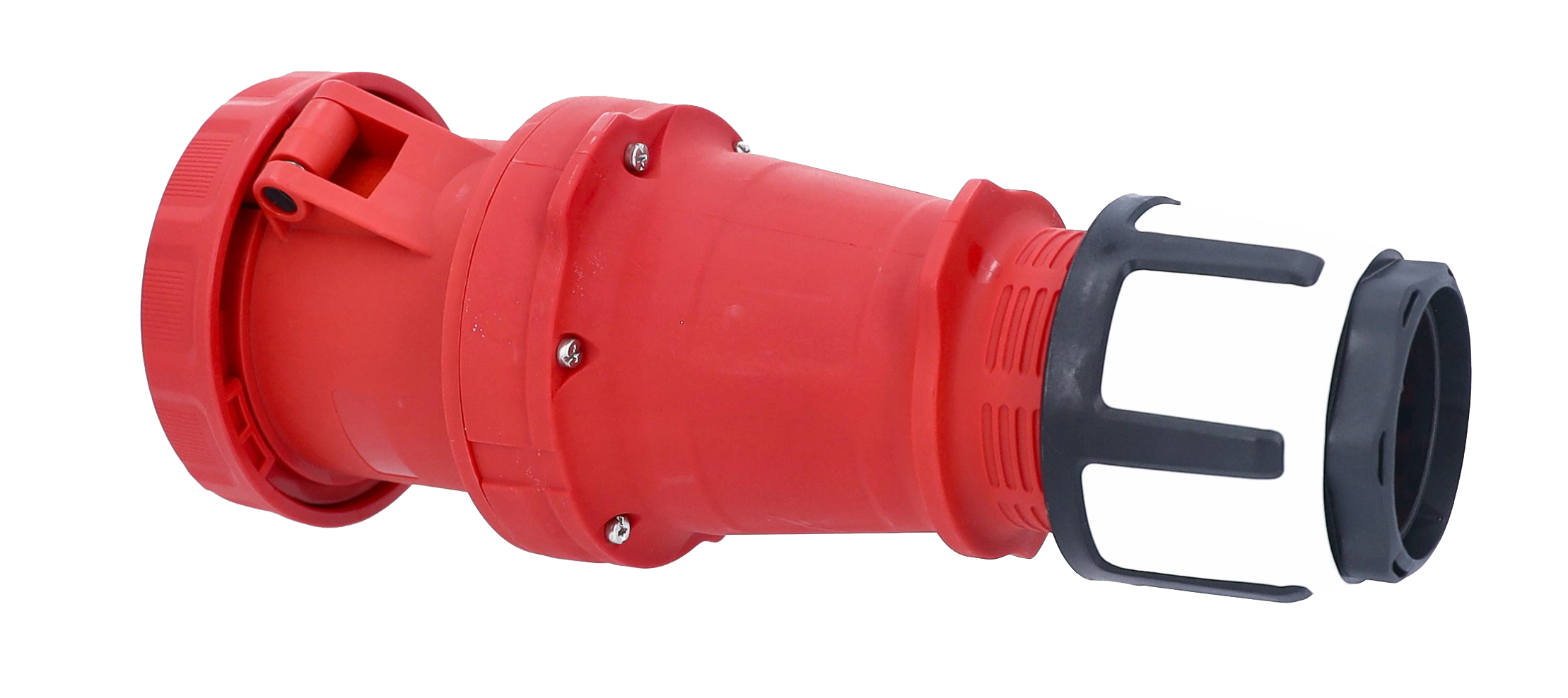

Schwabe CEE Koppelcontactstop 400V/125A IP67 5-polig
Artikelnummer:
88061429
Artikelnummer fabrikant: 61429
EAN: 4011160614293
Merk: Schwabe

Productinformatie
Schwabe CEE Koppelcontactstop 400V/125A IP67 5-polig
Slagvaste, spatwaterdichte behuizing van polyamide
Schroefcontact voor kabelaansluiting
Trekontlasting en bescherming tegen knikken van de kabel
Schroefaansluiting met afdichting (IP67)
• Aansluiting: 400V/125A 5-polig 6h
• Beschermingsklasse: IP67
• Norm: IEC 60309
Schroefcontact voor kabelaansluiting
Trekontlasting en bescherming tegen knikken van de kabel
Schroefaansluiting met afdichting (IP67)
• Aansluiting: 400V/125A 5-polig 6h
• Beschermingsklasse: IP67
• Norm: IEC 60309
Specificaties
ETIM Classificatie Code: | EC000140 (CEE-contactstop) |
---|---|
ETIM Groep Code: | EG000014 (Industriële contact/steek toepassingen) |
Aansluittechniek: | Schroefklem |
Aantal polen: | 5 |
Beschermingsgraad (IP): | IP67 |
IEC-stroomsterkte: | 125 A |
Insteekrichting: | Recht |
Kabelinvoer: | Schroefwartel |
Kenkleur: | Rood |
Materiaal: | Kunststof |
Spanning volgens EN 60309-2: | 400 V (50+60 Hz) rood |
Uurstand: | 6 h |
